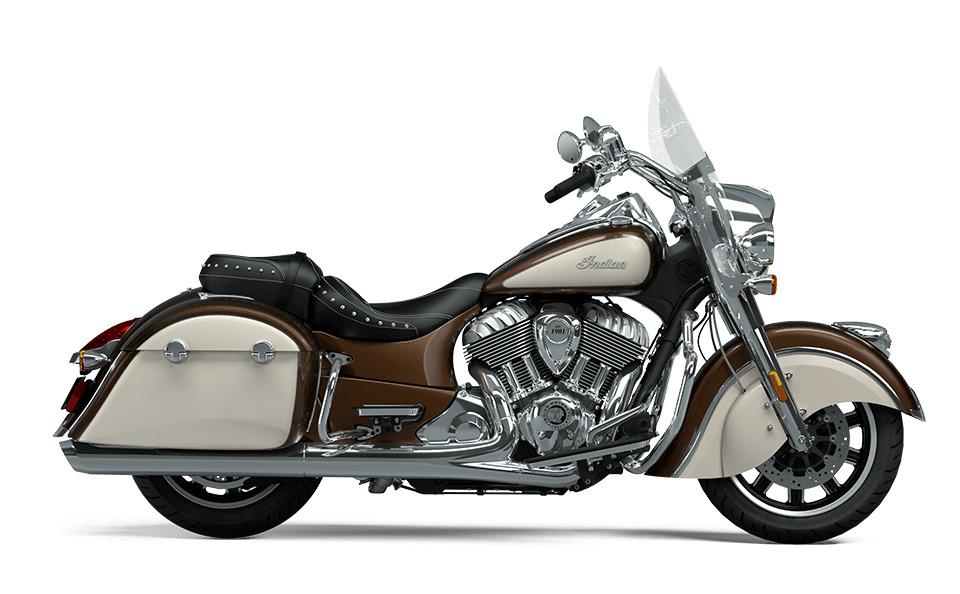

SPRINGFIELD CLASSIC

US$31.900


ESPECIFICACIONES



MOTOR Y TRANSMISIÓN

Bore x Stroke
3.976 in x 4.449 in (101 mm x 113 mm)
Compression Ratio
9.5:1
Displacement
111 cu in (1,811 cc)
Drive/Driven Clutch
Wet, Multi-Plate, Assist
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 111
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
119 ft-lbs
Peak Torque RPM
3,000 rpm
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch


DIMENSIONES

Fuel Capacity
5.5 gal (20.8 L)
Ground Clearance
5.6 in (142 mm)
GVWR
1385 lbs (628 kg)
Lean Angle
31°
Overall Height
56.6 in (1439 mm)
Overall Length
101.7 in (2,583 mm)
Overall Width
42.5 in (1,080 mm)
Rake/Trail
25° / 5.2 in (133 mm)
Seat Height
26 in (660 mm)
Weight (As Shipped / Running Order)
797 lbs (362 kg) / 829 lbs (376 kg)
Wheelbase
67.0 in (1,701 mm)


FRENOS

Front Brakes
Dual / 300mm floating rotor / with 4-piston calipers
Rear Brakes
Single / 300 mm Floating Rotor / 2 Piston Caliper


NEUMATICOS Y LLANTAS

Front Tires
Metzeler Cruisetec 130/80B17 65H
Front Wheel
Highlight Machine Tour 17 in x 3.5 in
Rear Tires
Metzeler Cruisetec 180/60R16 80H
Rear Wheel
Highlight Machine Tour 16 in x 5 in


SUSPENSIONES

Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (119 mm)
Rear Suspension
Single Shock w/ Air adjust
Rear Travel
4.5 in (114 mm)


OTRAS CARACTERISTICAS

Color / Graphics
Spirit Blue Metallic / Silver Quartz Metallic, Bronze Pearl Metallic / Silver Quartz Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
4" Analog Gauge with Speedometer, Indicator Lamps, and Multi-Function Display.
Infotainment
N/A
Lights
LED Headlamp/Driving, LED Tail/Brake/Turn Signal
Standard Equipment
Quick Release Windshield; Genuine Leather Seat; Remote-Locking Hard Saddlebags, Highway Bars; Tire Pressure Monitoring; Light Bar; Selectable Ride Modes, ABS; Cruise Control; Keyless Ignition; Indian® Script Tank Badge; 12v Charging Port
